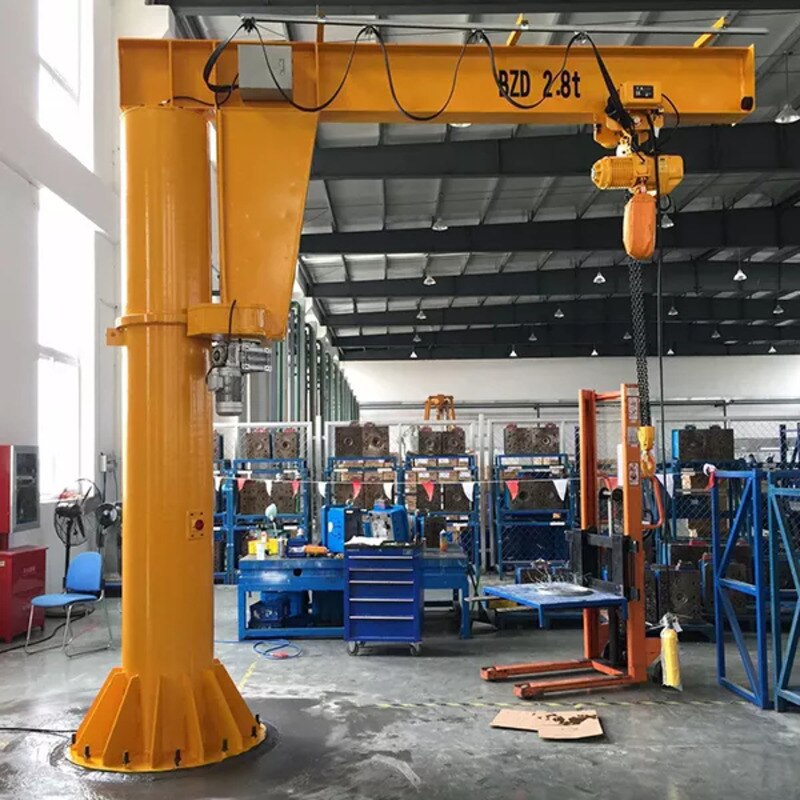

Jib Crane by Arrow Crane Material Handling Equipments

Jib Crane

Share with
Share this on :

Description

Product details

We offer two formats of jib cranes. Pillar Mounted Jib Crane or Post Mounted Jib Crane Wall Mounted Jib Crane or Column Mounted Jib Crane. Each of these may Jib Crane be equipped with electric chain hoists or electric wire rope hoists with the additional options of electric travel and electric slewing gear. The Jib arm may be under or over braced to maximize height of lift or travel. Post-mounted Jib Cranes can be constructed to provide a slewing angle 360°. Fixed Jib Cranes and monorail solutions may be appropriate for other applications. Contact Now +91 8825924198.

Keywords

  • Filter tags

Other Products

Related Products

Where Single Girder Gantry / Goliath Crane used? Industrial areas where the heavy load products are manufactured, in which this cranes are used in lifting the parts of the products manufactured Service and Maintenance All the parts accessories for our hoists and cranes are manufactured by Arrowcranemhe’s Cranes We provide dedicated support 24*7 for all the equipment’s that we supply. We take up annual maintenance contracts (AMC) for your assistance. Contact Now +91 8825924198. Single Girder Gantry Crane / Goliath Crane Arrowcranemhe’s Cranes is one of the top Gantry Crane / Goliath crane manufacturers in Chennai, India. We design , fabricate and installs gantry bridge crane systems to meet your material handling requirements. Our gantry bridge crane systems are available with either single, double girder bridges. They are ideally used in aircraft, automotive, construction and marine repair shops where shifting and moving of building blocks are required. They also work well in warehouses, machine shops, and loading areas. Gantry-cranes are supplied with four roller-bearing steel wheels for easy maneuverability. These cranes are highly efficient to work outdoors, achieving high speeds and capacities. The Single Girder Gantry / Goliath Crane can be operated with cable connected pendant or radio remote control based on customer requirement. The operational modes of the gantry crane / goliath crane has different modes listed Fully Automated Mode Semi Automated Mode Manual Mode in which all the three modes are delivered to customers based on their requirements. Most of the gantry cranes / goliath cranes are placed at outdoors however they can be installed into a closed building. The cranes placed outdoor are protected with corrosion allowance in design of main load bearing structural members, drilled holes on walkway to avoid accumulation of rain water, localized full cover for trolley, covers for Long travel motor/ brake, additional parking brake for Long travel motion, special paint, etc. Arrowcranemhe’s GANTRY CRANES / GOLIATH CRANES ARE UNRIVALED IN DESIGN STRENGTH, STABILITY, AND QUALITY CONSTRUCTION: Precision tolerances and welding ensure component alignment and operational stability. We use standardized, quality Indian I-beams. All nuts, bolts, and pins are plated for corrosion resistance, and all Gantries are painted safety yellow. Outdoor use options available, including exterior coatings and stainless steel motors. Single Girder Gantry Goliath Crane from Arrow Crane offers significant advantages such as reduced installation costs due to its simple setup, lower maintenance requirements. Contact Now +91 8825924198.
View Details
Single Girder Gantry _ Goliath Crane
Where Single Girder EOT Crane are used? General Manufacturing Automobile Industry Metal Products Manufacturing Service and Maintenance All the parts accessories for our hoists and cranes are manufactured by Amsak Cranes We provide dedicated support 24*7 for all the equipment’s that we supply. We take up annual maintenance contracts (AMC) for your assistance. Single girder EOT crane is a stable, cost-effective, and reliable type of EOT crane. It includes material handling EOT cranes with capacities of up to 30 tons, which are useful in the material handling industry. Single girder eot cranes are designed to cover a wide range of modern industrial demands, providing excellent value for money with no compromise on performance. Arrowcranemhe’s single girder crane has reduced wheel loads, saving costs on new support structures and increased lifting capacities on existing structures. The EOT Crane moves over the rails placed on the top of Gantry Girders which is designed with I beams or U beams and other rolled sections. It consists of an electric motor brake, a wire cord, a drum, a pulley, a hook, and several other components that move between rails connected to gantry girders. Electrical Panel – This modular pane design ensures easy installation, better performance, simple circuitry, compact terminals, and ducted wiring. Moreover, you can maintain the panel with minimal efforts. There is a special protection system to prevent motor overload issues. Limit switch – Over-lowering and over-hoisting of hook are common problems. To avoid these issues, you can use this limit switch. Stoppers, integrated with the switch, prevent the problem of over-travelling. Push button station – As it is a lightweight system, you can easily operate it and manage it. The aluminium design ensures a lasting value. Painting – Before assembling the parts, we have applied primers. Then, after testing the system, we have coated them with synthetic enamel. The bridge girder is supported on two end carriages, each housing a pair of wheels. The wheels are driven by motor gearbox units. A wire rope hoist is suspended below the bridge girder. The crane can be operated through pendent station hanging from wire rope hoist or through radio remote control. The pendent station can be made to move independent of hoist movement as per customer’s choice. Arrowcranemhe being one of the top 10 double girder eot crane manufacturers in Coimbatore, India we manufacturer quality double girder cranes premium crane service to all range of customers and maintain good relationship with customer after end of crane services. Arrow Crane, a leading manufacturer based in Coimbatore, specializes in the production of high-quality Single Girder EOT Cranes.
View Details
Single Girder EOT Crane
FEATURES OF LCS CRANES Highly flexible and reliable suspension systems Wide variety of suspension designs are available to enable the precise lifting and positioning of loads in almost inaccessible areas. Less vibration and low noise level Height adjustable Low maintenance cost with prolonged service life Service and Maintenance All the parts accessories for our hoists and cranes are manufactured by Amsak Cranes We provide dedicated support 24*7 for all the equipment’s that we supply. We take up annual maintenance contracts (AMC) for your assistance. Contact Now +91 8825924198. Arrowcranemhe’s Light Crane System (LCS), can help you meet your specific application requirements precisely, quickly and efficiently. The components of our modular system can be combined to create individual suspension monorail, suspension crane, pillar and wall mounted slewing jib crane solutions. Our LCS installations can be integrated easily into any production infrastructure – and modified at any time. We provide various types of LCS Cranes as per customer requirements. TYPES OF LCS CRANES Standard I Section with Manual Trolley Lightweight Profile System Cantilever Beam Type Special or tailor made crane system Profile system can be offered to a span of maximum 8m upon customer request. Profile System with aluminum rails suitable for less weight handling in assemblies to a capacity from 400kg (span up to 6m) is also available.
View Details
LCS Cranes
